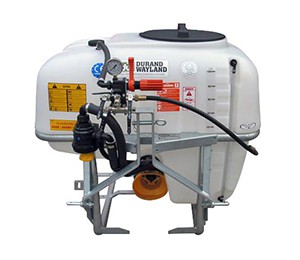

50/100/200 Gallon Sprayers
CDP-100-300×260-1
Standard Features
-
- Hot dipped galvanized metal frame
- 50/100/200 gallon poly tank
- Jet agitation
- Tank level sight gauge tube
- Pumps (see details below)
- Five way spray controls with pressure regulator
- Oil filled pressure gauge
- Crating included on base units
Dimensions
| Model | Length | Width | Height | Weight (lbs) |
| CDP10P50P | 24" | 40" | 46" | 165 |
| CDP14P100P | 36" | 44" | 47" | 220 |
| CDP20P200P | 38" | 59" | 56" | 388 |
Standard Units
| Part Number | Model | Gallon | PTO HP Required | Pump | GPM |
| 16-4921 | CDP10P50P | 50 | 20-30 | Bertolini PA430 | 10.5 @ 500 psi |
| 16-4922 | CDP14P100P | 100 | 20-30 | Bertolini PA530 | 14.3 @ 500 psi |
| 16-4923 | CDP20P200P | 200 | 40-50 | Bertolini PA830 | 20 @ 500 psi |
