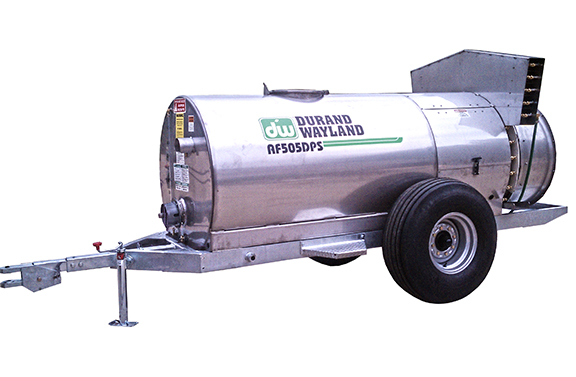

500 Gallon Centrifugal Pump Trailer Mounted PTO Driven
Standard Features
-
- Spray tank is 500 gallon (1893L) round unpainted 304 stainless steel with mechanical agitation, water return feeds stainless wash basket and features a stainless steel lid
- 36” (.92 m) sixteen blade variable pitch with straightening vanes Note: requires tractor horsepower from 40-75 hp
- CPS model-centrifugal two stage pump operates at 100 gpm (378 lpm) at 160 psi (11 bar)
- DPS model- Bertolini PAS144-4 piston diaphragm pump with 37 gpm (140 liter) @ 540 rpm to 725 psi
- 10 Spraying System double rollover ceramic nozzles come with individual on/off valve and check valve on each one
- Constant velocity PTO shaft
- Remote manual left and right spray control valve standard (electric available)
- Suction strainer mounted for easy access has cylindrical filter and built in check valve
- Two speed gearbox with neutral variable
- Straight hitch with eight different height settings
- Axle adjustable height wise
- Stainless blower housings and manifolds
- Heavy duty jack stand
- Tank level sight gauge is mounted to front of tank
- Pressure gauge is oil-filled, 0-300 psi (0-20.7 bar) is mounted to front of tank
- 14L x 16.1 tires
Key Dimensions
| Key Dimensions | |
| Tank diameter | 47″ |
| Ground clearance | 12-26″ |
| Length | 15′ |
| Width | 69″ |
| Height (frame bottom to top of tank) | 62.5″ |
Add-ons
| Air deflectors: | |||
| 4-5194 | Top "V" stainless steel deflectors | both | add |
| 4-5137 | Lower stainless steel deflectors | both | add |
| Row crop heads (mounted): | Row Crop Heads (mounted)One way stainless steel (mounted) | ||
| 4-9348S | One way stainless steel (mounted) | both | add |
| 4-5396S | Two way stainless steel (mounted) | both | add |
| Vineyard towers and scoops (mounted): | |||
| 11-3769 | Vineyard tower 920 (mounted) | both | add |
| 11-4321 | 12" spacer kit for vineyard tower 920 | both | add |
| 11-4613 | Vineyard trailing scoop assembly (94 1/2" wide) | CPS | add |
| 11-6462 | Vineyard lower scoop assembly (94 1/2" wide) | CPS | add |
| Tires and wheels: | |||
| 4-4207 | Heavy duty spindles and hubs | CPS | add |
| Miscellaneous: | |||
| 5-3130 | Hilly terrain suction check valve (installed) | both | add |
| 4-5441 | Electric valves for models with filters at valves | CPS | add |
| 5-6384 | Electric valves when used with SmartSpray (must order 8-0895) | both | add |
| 8-0895 | Bracket for 5-6384 | both | add |
| 11-9700 | Hydraulic control module-PAS144 | both | add |
| 5-8957 | Hydraulic brakes controlled from tractor | CPS | add |
| 5-6388 | 2" rearfill kit | both | add |
| 8-9280 | John Bean nozzles-20 station (in lieu of standard) | CPS | add |
| 8-8990 | Electric controls for PAS144 pump | DPS | exchange |
Standard Units
| Part Number | Model | Gallon | Pump | Weight | |
| A1-0063 | AF505CPS | 500 | Myers 2C95 | 2,150 lbs | |
| A1-0074 | AF505CPS | 500 | Bertolini PAS144 | 2,100 lbs |
